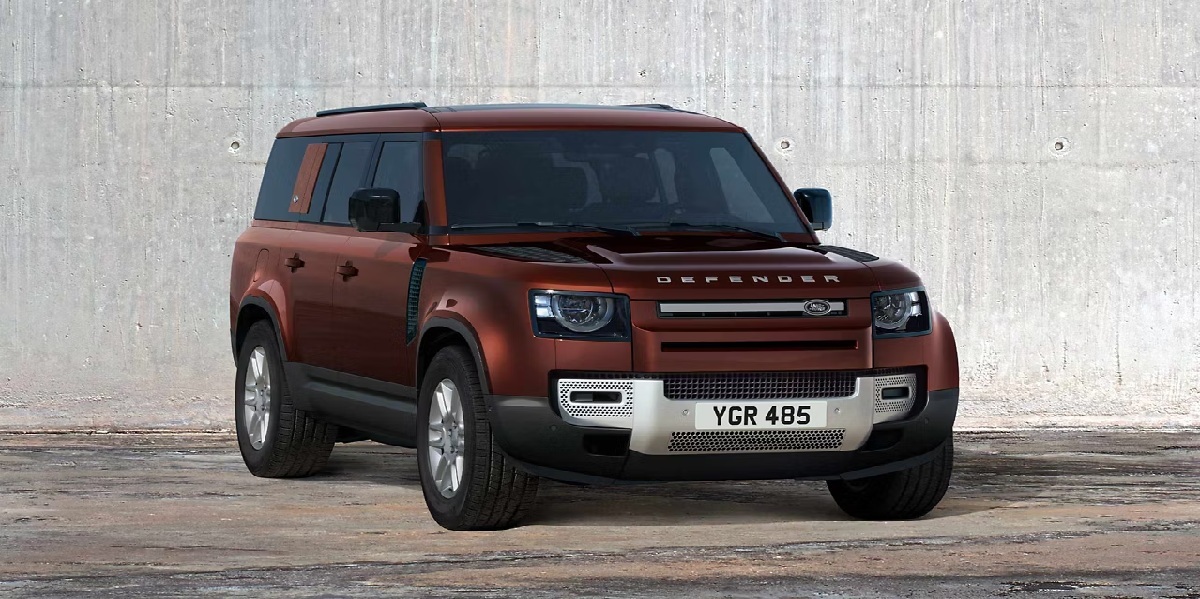

2025 Land Rover Defender 130 Ignition System - All Model Years

The Land Rover Defender 130 represents the pinnacle of modern ignition system technology, blending reliability with advanced electronic control for optimal performance in diverse conditions. As the longest variant in the Defender family, the 130 model maintains the Land Rover reputation for dependability while incorporating sophisticated ignition technologies across its various powertrain options.

Electronic Ignition Architecture

Direct Ignition System

The Defender 130 employs a sophisticated coil-on-plug (COP) direct ignition system across all engine variants. This design eliminates the traditional distributor and high-tension leads, replacing them with individual ignition coils mounted directly above each spark plug. The system delivers a dedicated high-voltage spark to each cylinder with precise timing, significantly improving combustion efficiency and reducing emissions. In the P300 and P400 inline-six engines, these coils generate up to 40,000 volts, ensuring reliable ignition even under challenging conditions.

Intelligent Coil Management

A notable advancement in the models is the implementation of intelligent coil management. This system continuously monitors each ignition coil’s performance, adjusting dwell time—the period during which the coil charges before firing—based on battery voltage, engine load, and ambient conditions. During cold starts at -30°C, for example, the system automatically increases dwell time to ensure sufficient spark energy, while reducing it during high-temperature operation to prevent coil overheating.

Engine Control Module Integration

Adaptive Spark Timing

The ignition system in the Defender 130 has a sophisticated Engine Control Module (ECM) that adjusts spark timing up to 100 times per second. This adaptive system considers multiple parameters, including engine speed, load, intake air temperature, and knock sensor feedback to optimize ignition timing for maximum power and efficiency. The P400 mild-hybrid variant features additional algorithms that coordinate ignition timing with the 48V electrical system, ensuring seamless operation during engine stop-start cycles.

Multi-Map Calibration

All Defender 130 models feature multi-map ignition calibration, with specific timing maps for different driving modes. The Terrain Response 2 system, for instance, selects specialized ignition maps for each off-road mode. In “Sand” mode, the system advances timing to maintain momentum, while in “Rock Crawl” mode, it retards timing to deliver smoother, more controllable torque at low speeds. The V8 models incorporate additional performance-oriented maps that optimize timing for maximum power delivery when sport mode is selected.

Spark Plug Technology

Iridium-Enhanced Electrodes

The Defender 130 utilizes advanced spark plugs featuring iridium-enhanced center electrodes across all engine variants. These specialized plugs offer significant advantages over conventional designs, including a lower voltage requirement, extended service life of up to 160,000 kilometres, and improved ignitability. The iridium center electrode, measuring just 0.6 mm in diameter, creates a more concentrated spark that ignites the air-fuel mixture more efficiently, particularly during cold starts and under lean-burn conditions.

Heat Range Optimization

Each engine variant in the latest lineup employs spark plugs with heat ranges specifically calibrated for their operating characteristics. The P300 and P400 inline-six engines use plugs with a mid-range heat rating, balancing quick warm-up with overheating protection. The high-performance V8 variant features cooler-running plugs to withstand higher combustion temperatures, while maintaining effective self-cleaning properties to prevent carbon fouling during low-speed operation.

Mild Hybrid Integration

48V System Coordination

In the P300 and P400 mild hybrid variants, the ignition system works in concert with the 48V electrical architecture. The Belt-Integrated Starter Generator (BISG) supports rapid, seamless engine restarts with precisely synchronized ignition timing. When the system initiates a restart, the ECM calculates the exact position of each piston and fires the appropriate cylinder’s spark plug with optimal timing, eliminating the characteristic hesitation often associated with conventional start-stop systems.

Energy Recovery Utilization

An innovative feature of the latest models is the integration of the ignition system with the energy recovery system. During deceleration, the BISG harvests kinetic energy and stores it in the 48V battery. This recaptured energy is then utilized to power the ignition system during subsequent acceleration, reducing the load on the traditional 12V electrical system and improving overall efficiency. This system is particularly beneficial during urban driving with frequent stop-start cycles, where it can reduce fuel consumption by up to 6%.

V8 Performance Ignition System

Twin-Spark Technology

The high-performance V8 variant of the Defender 130 features an advanced twin-spark ignition system. Each cylinder utilizes two spark plugs that fire in a precisely sequenced pattern, enhancing combustion efficiency and reducing emissions. This dual-ignition approach ensures more complete combustion of the air-fuel mixture, particularly under high-load conditions, resulting in improved power delivery and reduced unburned hydrocarbons in the exhaust stream.

Active Knock Control

The V8 model incorporates a sophisticated active knock control system that employs multiple sensors to detect pre-ignition or detonation. When knock is detected, the system can selectively retard timing for individual cylinders rather than reducing timing across all cylinders, maintaining maximum performance while protecting the engine. Additionally, the system features cylinder-selective timing adjustments that can compensate for variations in fuel quality, allowing the engine to adapt to different octane ratings while minimizing performance compromise.

Cold Weather Optimization

Rapid Warm-Up Protocol

Given the diverse climate conditions in which the Defender 130 operates, the new models feature a comprehensive cold-weather ignition optimization system. During cold starts below 0°C, the ECM implements a specialized rapid warm-up protocol that temporarily advances ignition timing while adjusting fuel delivery to quickly bring the catalytic converter to operating temperature. This reduces emissions during the critical warm-up period while simultaneously improving drivability in cold conditions.

Glow Plug Integration (Diesel Variants)

For diesel variants, the Defender 130 employs advanced ceramic glow plugs that reach operating temperature in less than two seconds, compared to the eight-second warm-up time of conventional metallic designs. These glow plugs operate at temperatures up to 1,300°C, ensuring reliable cold starts down to -40°C without requiring block heaters or other external warming devices. The system features post-heating functionality that continues to operate the glow plugs after startup, reducing white smoke emissions and improving combustion stability during the initial warm-up phase.

Ignition System Diagnostics

Real-Time Monitoring

All Defender 130 models incorporate comprehensive ignition system diagnostics that continuously monitor key parameters, including coil current, secondary voltage, and spark duration. This real-time monitoring allows the ECM to detect potential issues before they affect performance or drivability. When anomalies are detected, the system can implement compensatory strategies such as adjusting dwell time or timing to maintain optimal operation until service can be performed.

Predictive Maintenance Algorithms

An innovative feature introduced in the latest models is predictive maintenance functionality for the ignition system. By analyzing patterns in ignition performance data, the system can forecast component degradation and alert drivers before failures occur. For example, if a particular ignition coil shows signs of decreased efficiency, the vehicle will generate a service notification with a specific recommendation, allowing for proactive maintenance rather than reactive repairs.

Evolution from Previous Generations

Advancements Since 2020

The ignition system in the Defender 130 represents significant evolution from the 2020 launch models. Processing speed in the ECM has doubled, allowing for more complex ignition timing calculations and faster adaptations to changing conditions. Ignition coils now feature improved thermal management, with heat-dissipating designs that maintain consistent performance during extended high-load operation. Additionally, diagnostic capabilities have expanded to include individual cylinder misfire detection with specific fault identification, improving serviceability and reducing diagnostic time.

Compatibility and Upgrades

The newest models maintain backward compatibility with earlier Defender 130 variants while incorporating several key upgrades. The spark plug design has been refined to extend service intervals from 120,000 to 160,000 kilometres without sacrificing performance. Ignition coil connectors now feature improved environmental sealing, enhancing reliability in extreme conditions, including water fording up to 900 mm. These advancements ensure that the latest models deliver exceptional performance while maintaining the legendary durability expected from the Defender nameplate.

Five Facts About Land Rover Defender 130 Ignition Systems

1. The V8 model stores 16 distinct ignition timing maps, allowing precise calibration for different driving modes, ambient conditions, and fuel qualities.

2. The ignition coils can generate up to 45,000 volts during extreme conditions, such as cold starts at high altitude, though typical operation utilizes 30,000-35,000 volts.

3. The P400 mild hybrid can restart its engine in just 0.2 seconds, approximately three times faster than conventional starter-based systems.

4. The center electrode features an iridium tip with a platinum inlay, combining the superior durability of iridium with platinum’s excellent resistance to electrical erosion.

5. When the vehicle’s wade sensing system detects water depth exceeding 600 mm, it automatically adjusts ignition timing and increases idle speed to prevent water ingestion and maintain exhaust pressure.

Questions and Answers

How does the Defender 130 ignition system perform at high altitudes?

• This luxury SUV features a barometric pressure-compensating ignition system that automatically adjusts timing to accommodate reduced air density at high altitudes. As elevation increases and air becomes thinner, the ECM advances ignition timing to maintain optimal combustion. This system functions effectively up to 4,500 metres above sea level, with additional adaptive algorithms that analyze oxygen sensor feedback to fine-tune adjustments based on actual combustion efficiency rather than pre-programmed values alone.

What maintenance does the Defender 130 ignition system require?

• The ignition system requires minimal maintenance. Replace spark plugs at 160,000 kilometres for gasoline engines and 200,000 kilometres for diesel variants. Under normal operating conditions, ignition coils last the lifetime of the vehicle, though technicians should inspect them during routine service. The system continuously performs self-diagnostics and reports any issues through the vehicle’s information display. You don’t need routine adjustments or timing checks, as the electronic control system automatically maintains optimal settings.

How does the Defender 130 ignition system contribute to its off-road capability?

• The ignition system plays a crucial role in the legendary off-road performance through its integration with the Terrain Response 2 system. When traversing challenging terrain, the system selects specialized ignition maps that optimize torque delivery based on surface conditions. In situations requiring precise control, such as rock crawling, the system can retard timing to deliver smoother power application, reducing wheel slip. Additionally, during water fording, the ignition system maintains higher engine speeds to create positive pressure in the exhaust system, preventing water ingress into critical components.

What safety features are incorporated into the Defender 130 ignition system?

• The ignition system includes multiple safety features, beginning with inertia switch integration that immediately cuts ignition in the event of a collision. The system also features redundant control pathways that maintain basic functionality even if primary circuits are damaged. For rollover protection, the system incorporates gravitational sensors that can shut down ignition if the vehicle orientation exceeds predetermined thresholds. Additionally, the ignition system interfaces with the fuel delivery system to prevent potential fuel-related hazards, automatically disabling ignition if fuel system integrity is compromised.

How does the Defender 130 ignition system contribute to its emissions performance?

• The advanced ignition system significantly impacts emissions performance through precise combustion control. By optimizing ignition timing based on real-time operating conditions, the system minimizes the production of nitrogen oxides (NOx) and unburned hydrocarbons. During cold starts, the system implements a specialized timing strategy that rapidly brings the catalytic converter to operating temperature, reducing emissions during the critical warm-up period. The mild hybrid variants feature additional coordination between the ignition system and the 48V electrical architecture, enabling extended engine-off periods in stop-start traffic while maintaining immediate restart capability when needed.
