What is TPMS? The Range Rover Tire Pressure Monitoring System
The Tire Pressure Monitoring System (TPMS) in the latest Range Rover models represents a sophisticated safety feature designed to continuously monitor tire conditions and alert drivers to potential issues before they become dangerous. This advanced system has evolved significantly since its introduction and now offers comprehensive real-time monitoring capabilities across the entire Range Rover lineup.
How the Range Rover TPMS Works
The TPMS employed in Range Rover vehicles utilizes direct monitoring technology, meaning each tire contains a dedicated sensor that measures actual pressure rather than inferring it from wheel rotation data. These sensors operate on a 433 MHz frequency and communicate wirelessly with the vehicle's central computer system.
When you start your Range Rover, the TPMS initializes and begins collecting data. As you drive, each sensor transmits pressure readings at regular intervals, typically every 30 to 60 seconds. If any tire's pressure deviates from the manufacturer's recommended specifications by approximately 25% or more, the system triggers a warning on the instrument panel, alerting you to check your tires.
Modern Range Rovers display this information on the touchscreen infotainment system, showing the specific pressure readings for each tire. This allows drivers to identify exactly which tire requires attention and how much the pressure needs to be adjusted.
Components of the Range Rover TPMS
The TPMS consists of several key components working together:
Tire Pressure Sensors
Each wheel contains a valve-mounted sensor unit (part number LR070840 in many models) manufactured by VDO. These sensors include:
A pressure monitoring device
A temperature sensor (as pressure fluctuates with temperature)
A radio frequency transmitter
A long-life lithium battery (typically lasting 5-6 years)
An acceleration sensor that activates the unit when the vehicle is in motion
Receiver Module
Located within the vehicle, this component collects the wireless signals from each sensor and relays the information to the central computer.
Control Module
This processes the data from the receiver and determines if the pressures are within acceptable parameters.

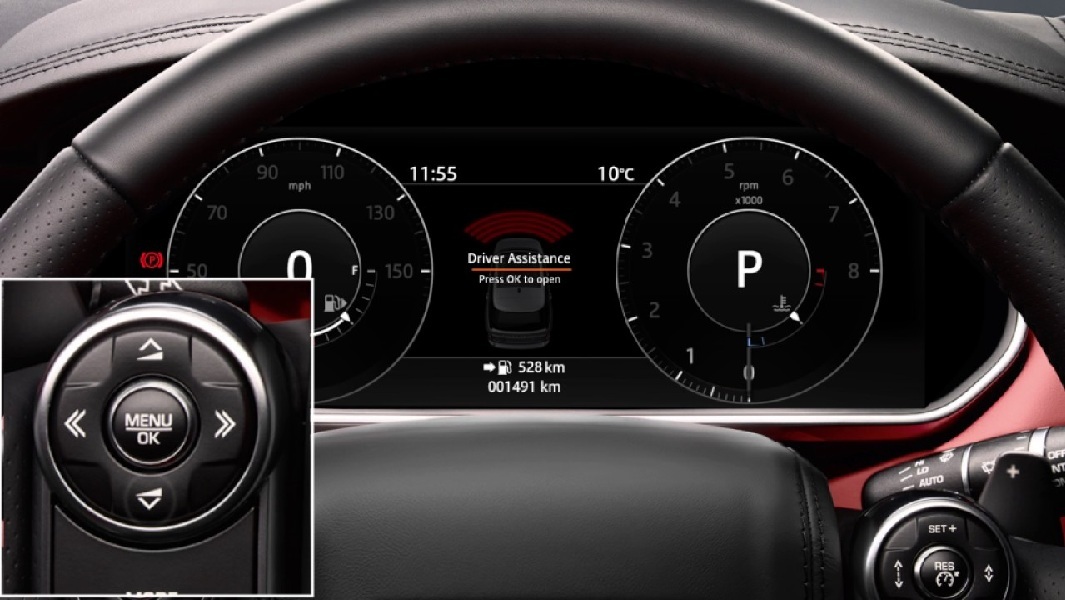

Warning Display
The instrument cluster and infotainment system display the warning indicator and the specific pressure readings for each tire.
Reset Button
Located in the glovebox or accessible through the infotainment system menu, this allows drivers to recalibrate the system after tire pressure adjustments or tire rotations.
TPMS Availability Across Range Rover Trims
The TPMS is a standard safety feature across all Range Rover models and trim levels, from the entry-level Range Rover Evoque to the top-specification Range Rover Autobiography. This universal inclusion reflects its importance as a safety feature and regulatory requirements that mandate TPMS on all new vehicles.
While the basic functionality remains consistent across the lineup, higher trim levels may offer enhanced features, such as:
More detailed graphical displays of tire pressure and temperature
Integration with off-road driving modes that suggest optimal tire pressures for different terrains
Predictive warnings that alert drivers to gradual pressure loss before reaching critical thresholds
The ability to monitor pressure during trailer towing with compatible trailer TPMS sensors
## Maintenance and Troubleshooting
The primary maintenance concern with the TPMS is battery life. As noted in user experiences, the sensors typically last about 5-6 years before the battery fails. When one sensor begins to fail, you should replace all four simultaneously to ensure consistent performance and avoid repeated service visits.
When new sensors are installed, most Range Rover models feature an automatic learning system that recognizes the new sensors after driving at speeds over 20 km/h for a short period. In many cases, this eliminates the need for special programming tools, though dealer service departments have advanced diagnostic equipment for troubleshooting more complex issues.
Common TPMS warnings may indicate:
Genuine low tire pressure (the most common cause)
Sensor battery failure
Sensor damage during tire mounting/dismounting
Electronic interference
Extreme temperature fluctuations
Benefits of the Range Rover TPMS
The sophisticated TPMS in Range Rover vehicles provides several significant benefits:
Safety Enhancement: Proper tire inflation is critical for vehicle handling, braking performance, and accident avoidance.
Improved Fuel Efficiency: Underinflated tires increase rolling resistance, reducing fuel economy by up to 3%.
Extended Tire Life: Maintaining correct pressure can extend tire life by up to 20%, ensuring even tread wear.
Off-Road Capability: Proper tire pressure is essential for maximizing traction in various conditions for a vehicle designed to handle challenging terrain.
Environmental Impact: Optimal tire pressure reduces carbon emissions through improved fuel efficiency.
Facts About the Range Rover TPMS
Range Rover TPMS sensors can detect and compensate for altitude changes, automatically adjusting expectations for regular pressure readings when driving in mountainous regions.
The sensors contain a sophisticated accelerometer that puts them into "sleep mode" when the vehicle is stationary to conserve battery life, only activating fully when the vehicle begins moving.
The Range Rover system is intelligent enough to recognize when winter tires with different pressure requirements are installed and can adjust warning thresholds accordingly.
The sensors can measure tire temperatures up to 125°C, helping to detect potential issues caused by excessive heat build-up during high-speed driving or when towing heavy loads.
In some Range Rover models, the TPMS integrates with the Terrain Response system to suggest optimal tire pressures for different driving conditions, such as lowering pressures for sand driving.
Questions and Answers About the Range Rover TPMS
How does the Range Rover know which tire is which?
Each sensor has a unique identification code registered to a specific wheel position during initial setup or after tire rotation. This allows the system to display the correct pressure reading for each wheel location.
Do I need to reprogram the sensors when I rotate my tires?
In most Range Rover models, the system will automatically relearn the positions after driving for a short period at speeds above 20 km/h. However, some models may require a manual reset using the vehicle’s infotainment system or a dealer reset.
Can I replace just one sensor if it fails?
While it’s technically possible to replace a single sensor, most service professionals recommend replacing all four simultaneously since they were likely installed at the same time and have similar battery life expectancies.
How accurate are the pressure readings from the Range Rover?
The sensors are typically accurate to within ±1.5 kPa (0.2 psi), providing reliable readings under normal operating conditions.
Will my tire pressure monitoring still work if I install aftermarket wheels?
Yes, but you’ll need to either transfer your original sensors to the new wheels or purchase compatible aftermarket sensors that operate on the same 433 MHz frequency. The sensors must also be programmed to communicate with your vehicle.
Does the pressure monitoring system work when the vehicle is stationary?
The sensors primarily transmit data when the vehicle is in motion. When stationary, the update frequency reduces to conserve battery life, though the last readings remain displayed on the dashboard.
What happens if I ignore the warning light?
Driving with significantly underinflated tires can lead to reduced handling capability, increased stopping distances, accelerated tire wear, potential tire failure, and decreased fuel efficiency.
Do extreme temperatures affect the pressure readings?
Yes, tire pressure naturally decreases in cold weather and increases in warm weather (approximately 1 psi for every 10°C change). The Range Rover system accounts for normal temperature-related fluctuations but will still warn if pressures fall outside safe parameters.
Can I disable the monitoring system if I find it annoying?
No, the tire pressure monitoring system is a federally mandated safety system and cannot be permanently disabled. It protects you by alerting you to potentially dangerous tire conditions.
How do I reset the system after adding air to my tires?
In most Range Rover models, the system will automatically reset once proper pressure is restored and you drive for a few minutes. Some models may require you to use the reset function in the vehicle settings menu on the infotainment screen.
